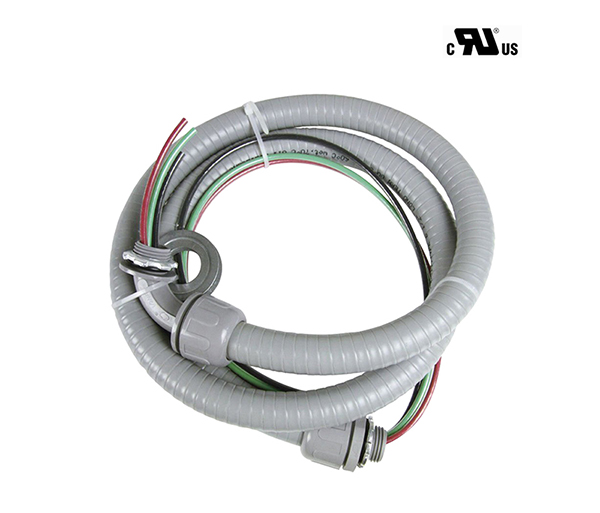

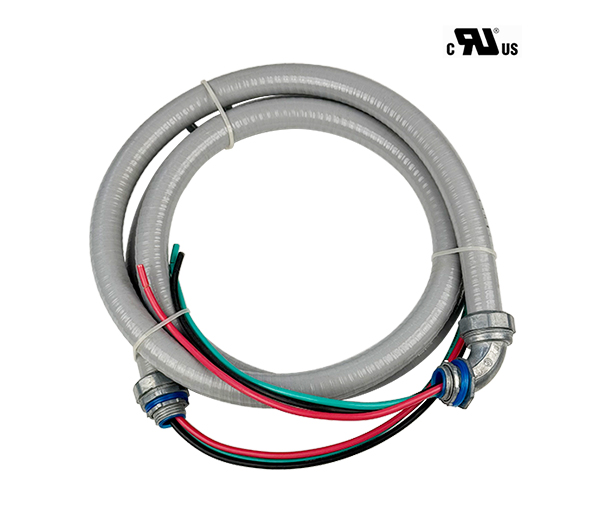

MASFRIO AC whips are UL-listed pre-assembled electrical connectors designed specifically for HVAC systems. They provide a safe, flexible, and code-compliant power connection between an air conditioner condenser and an AC disconnect switch. Each whip includes a liquid-tight flexible non-metallic conduit, THHN/THWN-2 copper conductors, a straight fitting, and a 90° liquid-tight fitting.
AC whips (also known as HVAC whips or pre-assembled conduit whips) are factory-assembled electrical whip assemblies that eliminate the need for field cutting, threading, and wire pulling. They are time-saving, consistent, and reduce installation errors. MASFRIO AC whips come in standard configurations:
Conduit sizes: 1/2 inch, 3/4 inch
Wire gauges: 10 AWG, 8 AWG THHN/THWN-2 copper
Standard lengths: 4 feet, 6 feet (custom lengths available upon request)
Certification: UL Listed
Environmental rating: Liquid-tight, UV-resistant, corrosion-resistant
Operating temperature: -20°C to 60°C, suitable for outdoor, high-humidity, and high-temperature environments
AC whips are widely used for the following HVAC equipment:
Residential central air conditioner outdoor units
Ductless mini-split systems
Light commercial air conditioners
Air source heat pumps
Swimming pool heat pumps and refrigeration units
How to install an AC whip? To install an AC whip, first turn off power at the main breaker. Mount the AC disconnect switch near the condenser. Connect the AC whip’s 90° fitting to the condenser junction box, route the conduit to the disconnect switch, and secure the straight fitting. Connect the black, white, and green wires to the corresponding terminals following local electrical codes. Always verify torque specifications and perform a continuity test before restoring power.
Selecting the correct AC whip size depends on the Minimum Circuit Ampacity (MCA) listed on the HVAC equipment nameplate. Use the table below as a reference:
| Equipment Type | Recommended Wire Gauge | Recommended Conduit Size |
|---|---|---|
| Most residential units (up to 30A MCA) | 10 AWG | 1/2 inch |
| High-capacity commercial units (30A-50A MCA) | 8 AWG | 3/4 inch |
Length selection should be based on the actual distance between the condenser and the AC disconnect switch, allowing a small service loop. MASFRIO offers 4ft and 6ft as standard, but custom lengths can be quoted.
MASFRIO AC whips are UL Listed (file number available upon request) and comply with the National Electrical Code (NEC) Articles 350 and 356 for liquid-tight flexible conduit. All materials are liquid-tight, UV-stabilized, and corrosion-resistant, ensuring reliable operation in outdoor, high-temperature, and high-moisture environments. Third-party testing confirms compliance with UL 514B and UL 360 standards.
Pre-assembled AC whips offer significant advantages over on-site built conduit assemblies. The table below summarizes key differences:
| Comparison Factor | Pre-Assembled AC Whips | Traditional Field Wiring |
|---|---|---|
| Installation time | 15-20 minutes | 45-60 minutes |
| Labor cost | Low | High |
| Quality consistency | Factory standardized | Dependent on electrician’s skill |
| Code compliance | UL pre-certified | Requires field verification |
| Material waste | Minimal | Cut-off scraps common |
A typical 3-ton residential split system requires a 30A disconnect. Using a MASFRIO 10 AWG, 1/2-inch, 4ft AC whip reduces installation time from 1 hour to 20 minutes. The 90° fitting easily connects to the condenser’s side junction box, while the straight fitting terminates at the disconnect switch mounted 3 feet away.
For a rooftop with six 5-ton condensers, pre-assembled 8 AWG, 3/4-inch, 6ft AC whips eliminate repetitive conduit bending and wire pulling. Contractors report 50% labor savings and zero inspection reworks due to consistent torque and conductor color coding.
| Problem | Possible Cause | Solution |
|---|---|---|
| AC unit does not start | Loose connection or incorrect wire gauge | Check wire gauge against equipment MCA; verify terminal torque (20-25 in-lbs for 10 AWG) |
| Conduit cracking or discoloration | Long-term UV exposure without stabilization | Replace with UV-stabilized liquid-tight conduit (MASFRIO whips are UV-resistant) |
| Water ingress at fittings | Fitting not tightened or damaged gasket | Torque fittings to manufacturer spec; inspect O-ring and replace if cracked |
Pre-assembled AC whips cut installation time by more than 50%, eliminate field cutting, threading, and wire pulling, ensure factory-torqued connections, and come with UL certification for immediate code compliance. They also reduce the risk of wiring errors and improve job site safety.
Yes. MASFRIO AC whips are built with liquid-tight, UV-resistant, and corrosion-resistant materials specifically designed for long-term outdoor use. They are rated for temperatures from -20°C to 60°C and withstand direct sunlight, rain, and high humidity.
Check the nameplate on your HVAC unit for the Minimum Circuit Ampacity (MCA). For MCA up to 30A, use 10 AWG with 1/2" conduit. For MCA between 30A and 50A, use 8 AWG with 3/4" conduit. Consult a licensed electrician if unsure.
Yes, the straight fitting on the whip end fits standard AC disconnect switch knockouts (1/2" or 3/4"). The 90° fitting matches most condenser junction box entries. Adapters are available for non-standard openings.
Standard stock lengths are 4 feet and 6 feet. Custom lengths (up to 25 feet) can be ordered with lead times. Contact MASFRIO sales for custom quotes.
To build a fully code-compliant and protected HVAC electrical circuit, pair MASFRIO AC whips with:
MASFRIO AC Disconnect Switches – Non-fused and fused, NEMA 3R rated for outdoor use.
MASFRIO Surge Protection Devices – Type 2 SPD for HVAC equipment.
MASFRIO HVAC Electrical Fittings – Reducers, adapters, and sealing bushings.
